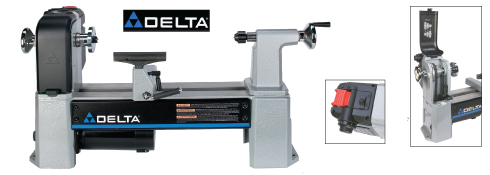

Delta 46-460 Midi Lathe

Delta 46-460 Lathe Specs

  • Spindle Thread - 1" x 8 TPI
  • Sp. Through Hole - 7/16"dia
  • Between Centers - 16-1/2", 42" w/ bed ext., 93" w/2 ext.
  • Swing over Bed - 12-1/2"
  • Construction - Cast Iron
  • T.Rest - 6",10", 5/8" Post
  • TR Base,Tstock - CamLock
  • Motor - 1hp 110V w/ Rev.
  • 250-4,000rpm in 3 ranges
  • Head & Tail Taper - #2MT
  • Tailstock Ram Travel - 2"
  • Indexing - Yes, 24 position
  • 63-1/2"L x 20"W x 50"H
  • Net Weight - 90lbs

This new lathe from Delta was designed with feedback from woodturners. It has a best in class12-1/2" swing and a patented quick-change belt tensioning system that eliminates guesswork and belt slippage. The 46-460 has a 1hp variable speed motor with reversing. Reversing helps with getting better sanding results. There are three speed ranges with a slowest speed of 250 rpm which is better than any other benchtop lathe on the market. The top speed of the 46-460 is 4,000 rpm.

Standard Equipment includes: 6" Tool Rest, 3" Faceplate, 6" and 10" Toolrests, Spur Center, Live Center, Knock-out Rod, Handwheel, 24 Position Indexing, and Wrench.

Add $60.00 to normal S&H

Code Name Price
46-460 Delta 46-460 Variable Speed Midi Lathe $699.95
46-463 Delta Midi 25-1/2" Bed Extension $149.95
46-462 Delta Midi Lathe Stand $169.95
46-464 Delta Midi Lathe Stand Extension $79.95
