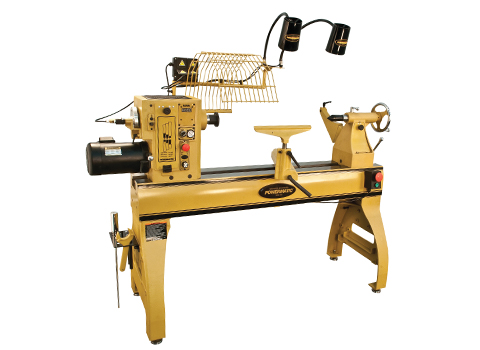

Powermatic 4224B Lathe

Call 800 683-8876 for Best Price!

Free shipping to residential or commercial address to the 48 contiguous states. Liftgate included where needed.

Powermatic 4224B Lathe Specs

  • Cast iron construction
  • 24" Swing over Bed
  • Extended 1-1/4"x 8TPI Spindle
  • 44" Spindle Height
  • #2MT Headstock/Tailstock Tapers
  • 4-1/2" Tailstock Ram travel
  • 98-Position Indexing
  • Offset Cam-Action Banjo
  • Holder for Spindle Copying
  • 42" Between centers
  • 3 HP 220V Motor, with reversing
  • Electronic Inverter w/speeds 40-970, 80-2000 and 135-3500rpm
  • Magnetic Remote Switch
  • Four 110v Outlets for Accessories
  • Vacuum Chuck with integrated Venturi Vacuum System
  • Air Nozzle with quick connect
  • Dual 100w Task Lamps
  • Footprint 68"L x 27"W
  • Net Weight 948 lbs

This item is shipped from the manufacturer by truck. Air shipping and international shipping are not available for this item. Ships to the 48 contiguous states only. It is not available for pick up at our facility.

Powermatic developed this new lathe with feedback from professional woodturners. It is extremely heavy duty and will satisfy the needs of almost any woodturner. The sliding headstock features a 3HP motor and 98-position indexing and digital speed read out. An integrated vacuum system allows you to hold workpieces without leaving screw holes. The vacuum system works with an air compressor (not included). Also included are two 100w task lights, four 110v outlets and a remote switch that can be positioned anywhere on the lathe. The electronic variable speed allows for speeds between 40 and 3500 rpm with three speed ranges for plenty of power when needed.

Standard equipment includes: knockout bar, 14" tool rest, 3" faceplate, live tail center, 2 task lights, remote switch, 3HP motor, air hose with air gun and instruction manual.

Code Name Price
1794224K Powermatic 4224B Lathe $7,899.99
6294900 20" Bed Extension Complete Kit for 4224B $1,281.00
6294905 20" Bed Extension for 4224B $699.99
