Powermatic 3520C Lathe

Thumbnail Filmstrip of Powermatic 3520C Lathe Images

    Purchase Powermatic 3520C Lathe

    SKU: 1353001 Powermatic 3520C Lathe

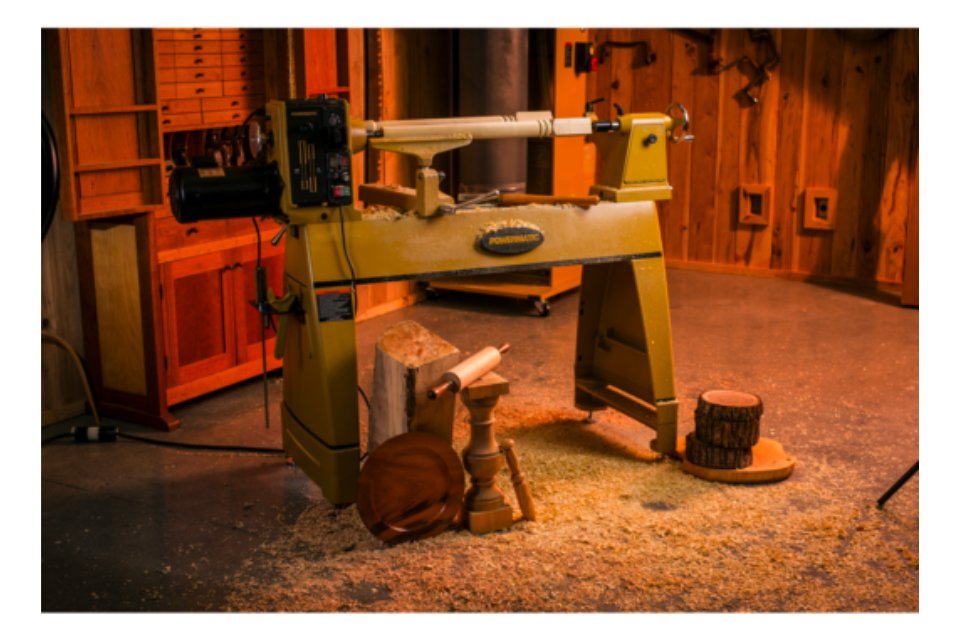

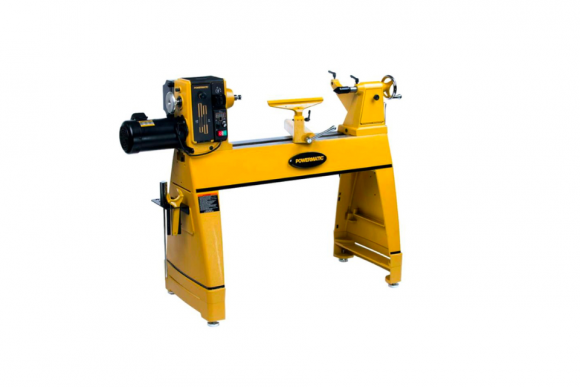

    The 3520C is made of heavy 1/2" thick cast iron with precision ground bedways. The headstock slides along the bed to create a short bed lathe or to turn outboard off the tailstock end of the lathe. It is locked in place with a convenient cam-lock handle. The Nose of the headstock is extended to allow better access. The tailstock features solid cast iron construction with a storage area protected by a door.

    The 3520C is powered by a 2hp AC Variable Speed Motor with a readout on the front of the headstock. It has a 10-groove Poly-V belt with two speed ranges for maximum torque. The cast iron base is made with removable sections so the lathe height can be adjusted for shorter users. The minimum spindle height is 40-5/8" with a maximum height of about 46". The 3520C has a 5-Year Warranty (1 year for industrial, commercial or educational use).

    $150 Heavy Item Handling charge to residential or commercial addresses. Liftgate included where needed.

    This item is shipped from the manufacturer by truck. Air shipping and international shipping are not available for this item. Ships to the 48 contiguous states only. It is not available for pick up at our facility.

    Standard Equipment Includes:

    • Manual
    • 14" Toolrest
    • Tool Holder
    • 3" Faceplate
    • Knockout Rod
    • Spur Center
    • Live Tail Center
    • Spindle Lock
    • Wrench
    Bed Construction Cast Iron
    Motor Amps 20
    Motor (HP) 2.0
    Motor Phase  3
    Motor Power (HP) 2
    Motor Voltage 220V Single Phase
    Overall Dimensions (In.) 69-1/2 x 36-1/2 x 47
    Prop 65 Cancer and Reproductive Harm
    Recommended Circuit Size (Amps) 20
    Swing Over Bed (In.) 20
    Weight 726 lbs
    User Manual
