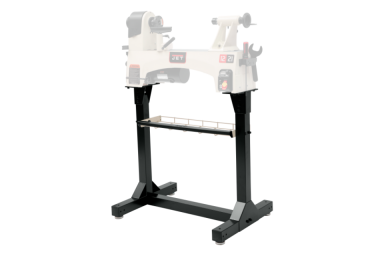

Additional image shows the lathe with optional lathe stand (sold separately)
Was $879.99, Now $849.99!
Jet 1221VS Lathe Specs
- Cast Iron Construction
- 1" x 8TPI Spindle
- #2MT Headstock Taper
- 3/8" Headstock Spindle Bore
- #2MT Tailstock w/Live Center
- Patent-Pending Belt Tension System
- 12" Swing over bed
- Acme Thread on Tailstock Quill
- 2-1/4" Tailstock Ram travel
- 21" Between Centers
- 1 HP 115V Motor
- Speeds: 60-3600 rpm in 3 ranges
- 12" Swing Over Bed
- 24 Position Indexing
- Dimensions 33-3/5" L x 11" W x 17-7/10" H
- Net Weight: approx. 121 lbs
Enhanced control panel, new ratchet belt system and updated design are a few of the innovations delivered in Jet's 1221VS Lathe. The 1221VS provides more control by incorporating three optimally designed speed ranges, including lower speeds for intricate, ornamental turnings.
The 1221VS is powered by a 1HP, 6 amp, single-phase motor that gives variable speeds ranging from 60 to 3600 rpm. All three speed ranges are designed to perform different woodturning tasks. In addition to the slow speeds, a middle range (110 to 1800) is great for sanding and finishing, and the high range is great for small diameter items and general woodturning.
A digital spindle readout shows the exact rpm level for adjustment and fine-tuning. The digital readout, on/off switch, and forward/reverse switch are conveniently located directly beneath the tailstock.
The lathe headstock features 24 indexing positions. There is a spring-loaded spindle lock to facilitate work piece changes. The tailstock has an Acme thread and a through hole for faster drilling.

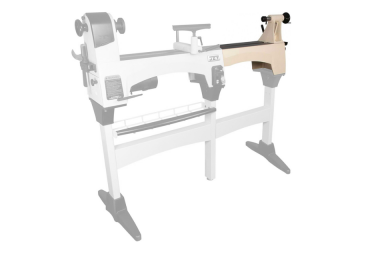

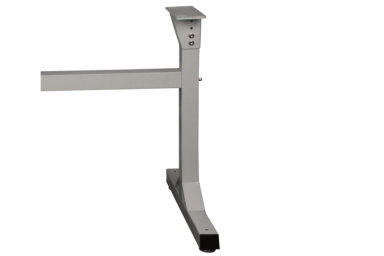

The Jet 1221VS Lathe weighs 121 lbs. and measures 33-3/5" L x 11" W x 17-7/10" H. It provides 21" working distance between centers and a 12" swing over the bed. Its heavy duty, cast iron bed, headstock and tailstock provide stability while limiting vibration. The bedway is precision-ground to allow smooth sliding of the tailstock and tool rest. Optional accessories include a Lathe Stand with wide feet for stability and storage basket, a 22" bed extension and an extension stand. (All Listed below)
The 1221VS is covered by a 5-Year Warranty, as well as Jet's RED Assurance support guarantee.
Standard Equipment Includes:
- 3" Faceplate
- 6" & 10" Toolrests
- Drive Center
- Live Tail Center
- Knockout Rod
- Wrench Holder and Instructions
This item are shipped from the manufacturer by truck. An additional $45 will be added to regular Shipping & Handling for the lathe. Air shipping and international shipping is not available for this item. Ships to 48 contiguous states only.
The related items below are also shipped from the manufacturer
