Thumbnail Filmstrip of Vicmarc VM120/150 Shark Jaws - 105mm Images

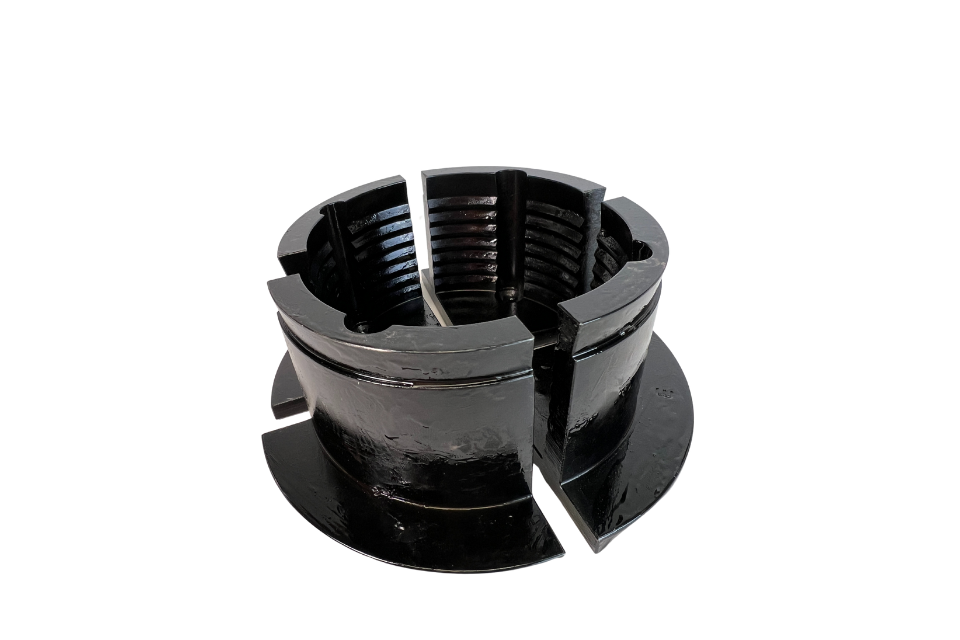

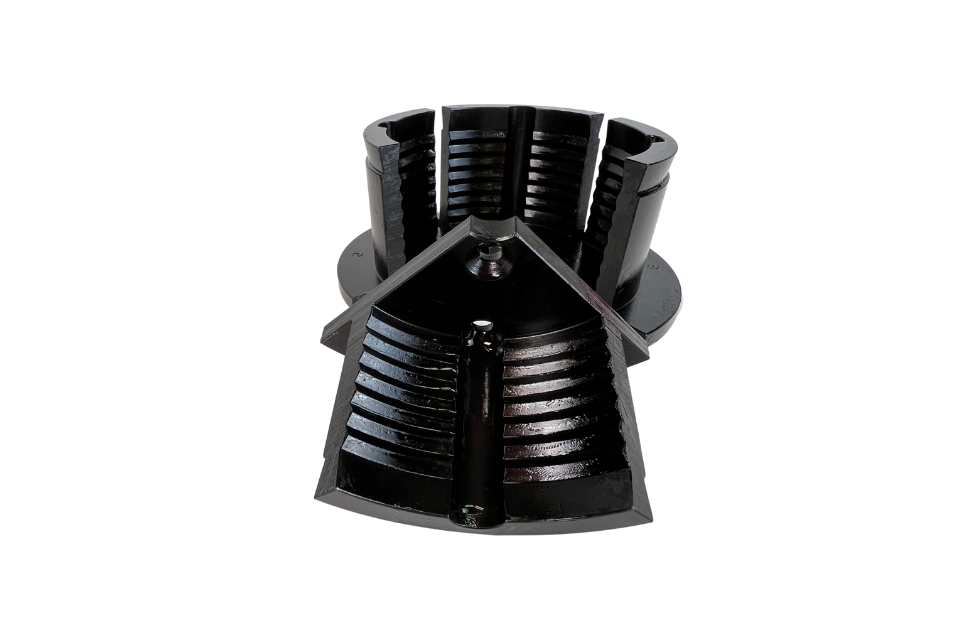

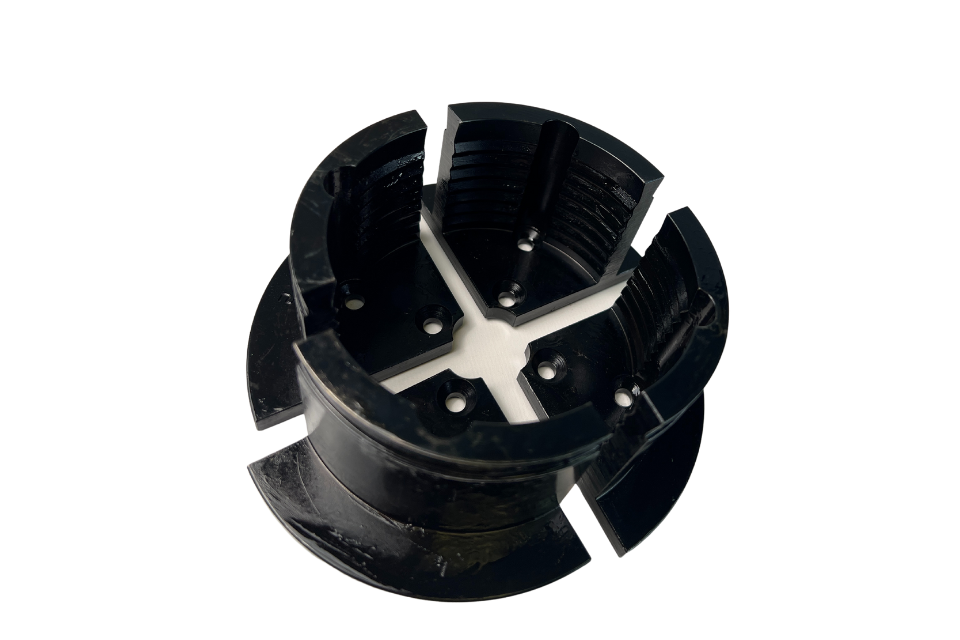

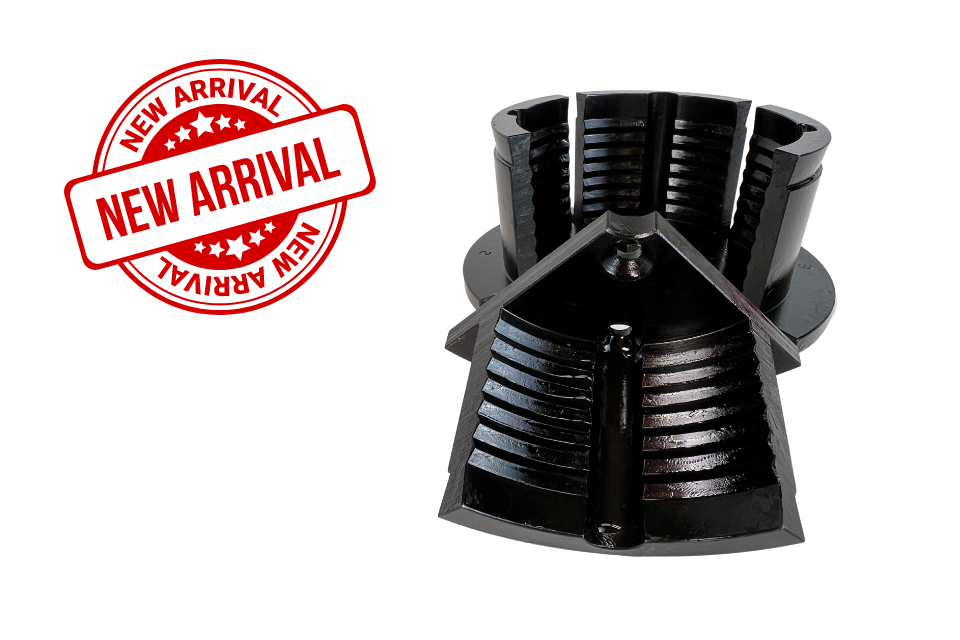

The 105mm Shark Jaws have a serrated inner surface with a smooth dovetail at the top. These deep grip jaws can be used to give access behind the turning when using the dovetail grip at the top of the jaws.
The serrated deep grip is used for maximum holding power on larger or longer pieces. The outside of the jaws are smooth with a dovetail at the top for expanding into a dovetail recess. Holding sizes are listed below. These jaws are used on the VM120 and VM150 Chucks only.

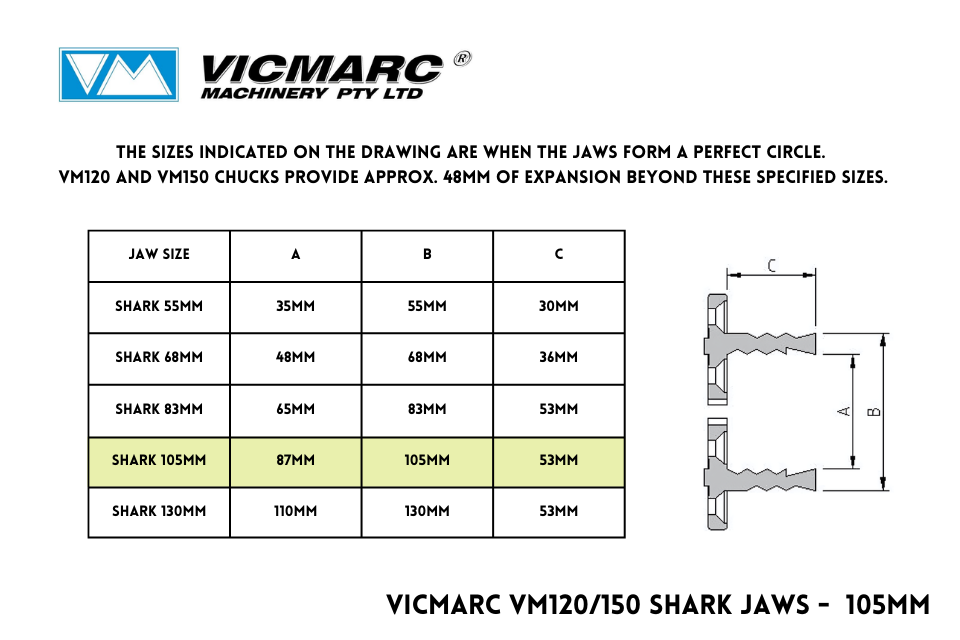

Grips:3-5/16" to 4-3/8" Expands: 4-1/4" to 5-7/8" Depth of Jaws: 2"
