Sorby Patriot Chuck

Thumbnail Filmstrip of Sorby Patriot Chuck Images

  • Sorby Patriot Chuck
  • Sorby Patriot Chuck
  • Sorby Patriot Chuck
Purchase Sorby Patriot Chuck

SKU: 118710 Sorby Patriot Chuck

$339.95
In Stock

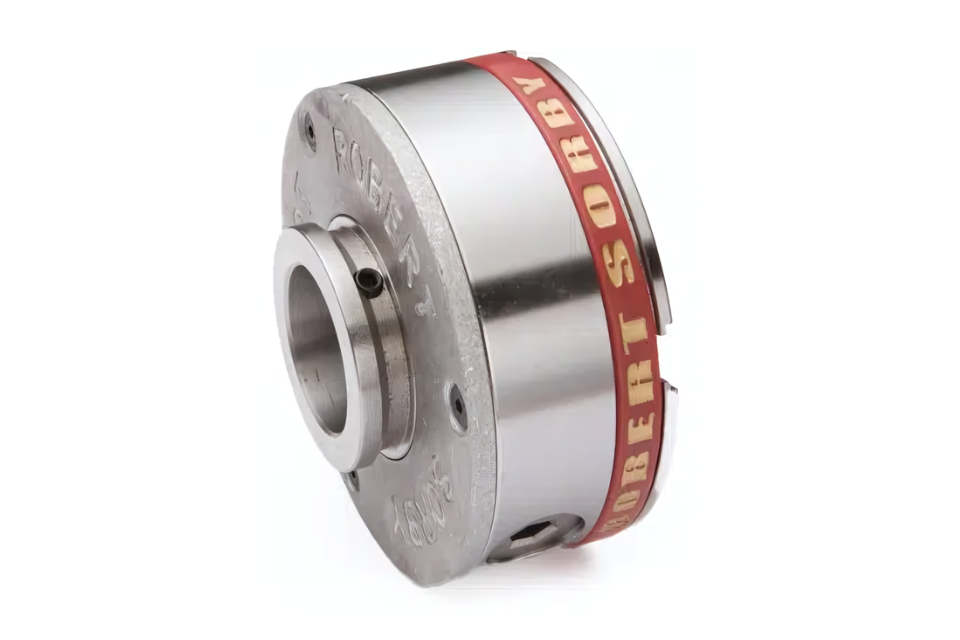

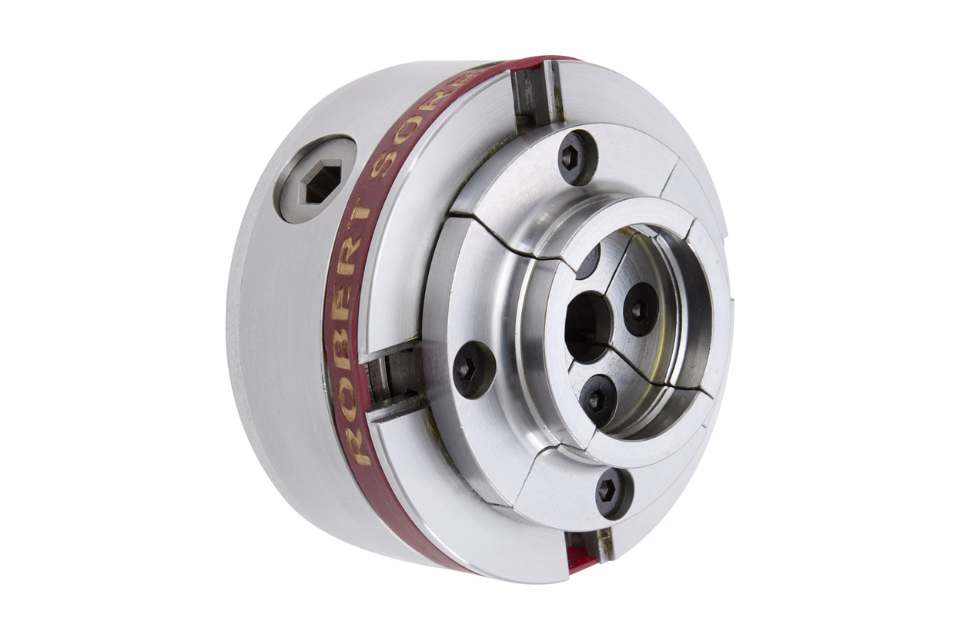

The Patriot is a precision 4-Jaw self-centering scroll chuck made in England by Robert Sorby. The chuck uses a single tilt-away wrench that allows even larger workpieces to be tightened easily. The design of the gearing insures smooth jaw travel for the life of the chuck. A wide range of optional jaws are available.

The Patriot Chuck includes 2" (50mm) jaws that feature a smooth dovetail on the inside and outside. The lower section of the inside has serrations for a better grip on larger workpieces.

 The 2" Jaws will hold:

Grips: 1-9/16" (42mm) to 2-5/16" (67mm) Expands: 2" (50mm) to 3" (76mm)

This chuck features:

  • 4" Diameter with enclosed back
  • 4-Jaw Self-Centering Scroll Action
  • Precision machining for smooth operation
  • Single Key tightening with Tilt-Away wrench design for larger work pieces
  • Unique Rubber Guard protects the operator
  • Gearing make a secure grip easy to achieve
  • Includes Screw Center for mounting a work using a single pilot 11/32" hole
  • Weight: 4-1/4 pounds

The Patriot Chuck comes standard with a screw center that permits mounting a workpiece easily with an 11/32" diameter pilot hole.
