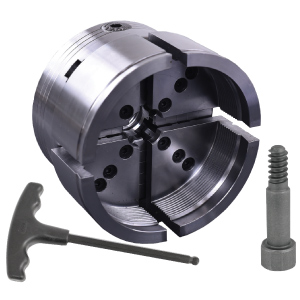

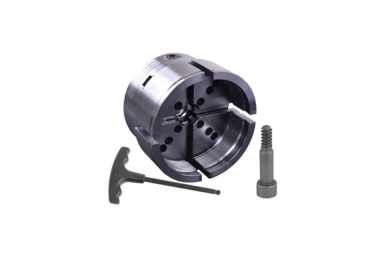

Nova Titan III Chuck

  • Ball End Key, tilt-away one handed operation
  • Precise, Powerful Geared Grip with Tuff Lock™
  • Chuck body is 5" in diameter by 2-1/2" deep
  • Extends gripping range of standard Nova Jaws
  • Longer hardened jaw slides with 3 mounting holes and safety stop
  • Includes New 5" Titan Powergrip Deep Jaws with 3 Hole for fastening to base jaws
  • 5.75 Powergrip Jaws are 1-1/2" deep
  • Grips: 4" to 5-3/8", Expands: 4-5/8" to 6"
  • Includes Woodworm Screw Center
  • Direct threaded to fit 1-1/4" x 8 Spindle
  • Fully sealed composite indexing backing plate
  • Titan III Chuck Weight: 8 pounds
  • 6 Year Limited Warranty

The Titan III is the largest in the Nova line of 4-Jaw Chucks. It is designed for lathes with a 16" or larger swing. The chuck includes the 1-5/8" Deep Powergrip III Jaws that are held on the chuck with 3 screws to hold larger workpieces. Two other sizes of deep grip Jaws are available as options (not included).

The Titan III is compatible with the standard Nova Jaws and will extend their holding range. The Titan III Includes: Chuck Body, Titan III 5" Powergrip™ Jaws, Screw Center, Ball End Chuck Key, Jaw Wrench, and Manual.

The Titan III is available direct threaded for 1-1/4" x 8 spindle thread only.
