Vicmarc VM120 Chuck & Adaptors

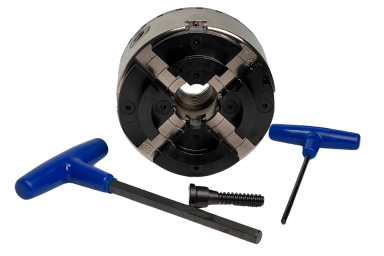

The VM120 Chuck features:

• 5" Body Diameter with index holes in backplate
• Single Key 4-Jaw Self-Centering Scroll Action
• 6 to 1 Gear Ratio insures a secure grip
• Includes a Screw Center for mounting a work using a single pilot hole
• Includes 2 T- Handle hex keys and insert wrench
• Weight: 8 pounds

Includes 2" smooth dovetail jaws that following holding capacities:

Grips: 2" to 3-1/8" Expands: 2-5/8" to 4-3/8"

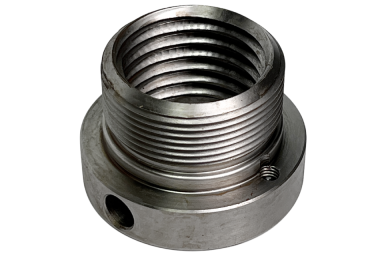

This Chuck requires an Adaptor to fit your lathe's spindle size. The Adaptor is purchased separately (item #118151A-P shown below).

The VM120 Vicmarc 4-jaw self centering chuck measures 5" in diameter and weighs over 8 lbs. This chuck will handle large or small workpieces. The jaws supplied with the VM120 will grip a spigot from 1-7/8" to 3-3/4" in diameter and will expand into a dovetail recess from 2-5/8" to 4-1/2" in diameter.

This 5" diameter chuck has a closed body to keep out dust for continued smooth action and single hand tightening that make it a pleasure to use.
